INPUT general

Independent gain adjustment between left±12.7 dB (in steps of 0.1 dB)

and right channels

Grounding (menu selection)                   Grounded:Signalgroundisconnectedtoearth

Lifted: Signal ground is decoupled from earth

INPUT Balanced

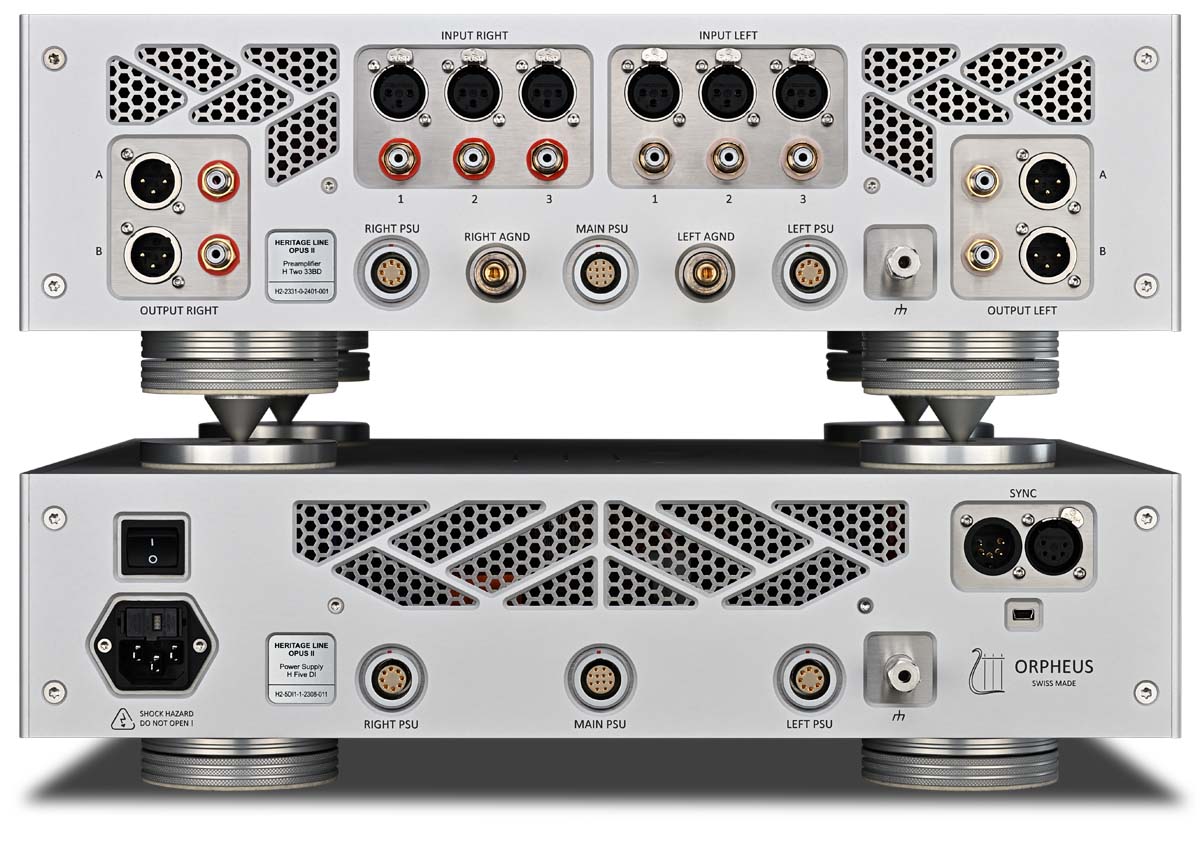

Connections                                      XLR

Impedance                                        94kΩ

Maximum input voltage                        18.4Vrmss

INPUT Unbalanced

Connections                                      RCA

Impedance                                        47kΩ

Maximum input voltage                        9.2Vrm

Volume contrôle

Adjustment range                               -127.5dBto+6dB(instepsof0.5dB)

Balance correction range                       ±12.8dB(instepsof0.1dB)

OUTPUT

Frequency range (+0dB, -0.1dB)               5Hzto1.5MHz

THD+N (22Hz to 44kHz)                        <0.00063%@1kHz(-105dB)

Clip to Noise Ratio (input Bal)                 -132dB

Clip to Noise Ratio (input Unbal)             -126dB

Number of outputs                             OutputA:1xBalancedor1xUnbalanced

Output B: 1x Balanced or 1x Unbalanced

TECHNILOGY USED

- Dual analogique fully Balanced Discrete preamplifier.

- Volume control technology based on constant impedance resistive quadrupoles with a

logarithmic distribution architecture.

- Specificity of output B: Can be used in Bypass mode in order to connect, for example, one

Headphone Amplifier with integrated volume control.

POWER

Nominal line voltage                            100,115or230Vac

Input voltage range                             ±8%

Maximum power consumption                60W

Standby consumption                           Lessthan1W

SIZE & WEIGHT

Device alone: 146 mm

Height                                             Device+spikes:175mm

Device + spikes + PSU: 301 mm

Depth                                              440mm

Width                                              440mm

Weight (Power supply included)               50kg

SAFETY FEATURES

- Automatic mute if sensing a drop in the mains supply voltage

  MSRP 45,500EURO
